endo gia stapler and reloads/ endoscopic stapler and reloads
endoscopic cutting stapler
1. Clinical Back Ground
A stapler is a mechanical device, the word "stapler" can actually
refer to a number of different devices of varying uses. In addition
to joining paper sheets together, staplers can also be used in a
surgical setting to join tissue together with surgical staples to
close a surgical wound (much in the same way as sutures). Staplers
were originally developed to address the perceived problem of
patency (security against stenosis or occlusion of the lumen) and
tightness (security against leaks of blood or bowel contents) as
well as easiness and quickness in performing the anastomosis. Leaks
from poor suturing of bowel anastomoses was at that time[when?] a
significant cause of post-surgical mortality. More recent studies
have shown that with current suturing techniques there is no
significant difference in outcome between hand sutured and
mechanical anastomoses, but mechanical anastomoses are
significantly quicker to perform. The technique was pioneered by a
Hungarian surgeon, Humor Hultl, known as the "father of surgical
stapling". Hultl's prototype stapler of 1908 weighed eight pounds
(3.6 kg), and required two hours to assemble and load. Many hours
were spent trying to achieve a consistent staple line and reliably
patent anastomoses. The early instruments, by developers including
Hultl, von Petz, Friedrich and Nakayama, were complex and
cumbersome to use.
2. Contraindications
2.1 Severe mucosal edema
2.2 Do not use the instrument on any tissue that compresses easily
to below 1.0mm. In this case it would not be fully tightened to
ensure hemostasis
2.3 Do not use the stapler if the diameter of component is larger
than the lumen organ’s, or else may lead to suture mouth shrink or
straitness.
2.4 Do not use the stapler if there is not enough tissue allow to
be overturned to make the staples suture tightly.
The single packaging of Disposable endo cutter stapler adopts
blister packing, the middle packaging a box and the outside packing
is a corrugated carton.
4. General medical instruments code
UMDNS-Code: 【16-771】 GMDN-Code: 【P59871】
5. Product Classification:
Class Ⅱb by Rule 8 Annex Ⅸ of MDD 93/42/EEC(2007/47/EC).
Products Inforumation

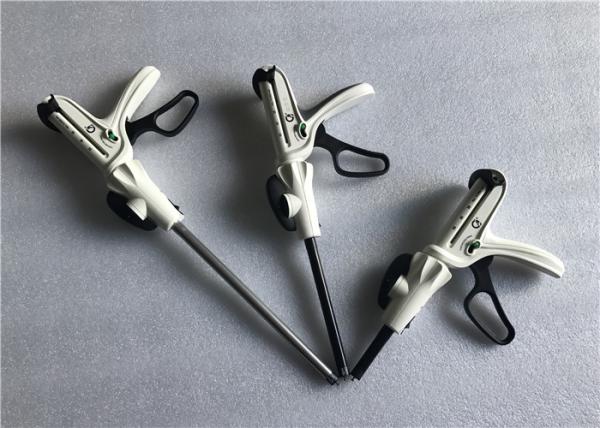

1.Endoscopic Stapler
| Model No. | Shaft Length | Compatible Reload | Usage |
| QLCE-II | 160 | 30-2.5/3.8/4.8 45-2.5/3.8/4.8 60-2.5/3.8/4.8 30-W/P/K 45-W/P/K
60-W/P/K | Endoscope Operation in abdominal, gynecologic,pediatric and
thoracic surgery for resection, transection and creation of
anstomosis. |
2. Reloads
| Model No. | Color | Nail Height (mm) | Suture length (mm) | Suturing Thickness (mm) | Usage |
| Articulating Stapler Reload |
| QLCEL-30A | Black | 4.8 | 30 | 2.0 | Normal Tissue |
| QLCEL-30B | Violet | 3.5 | 30 | 1.5 | Thin Tissue |
| QLCEL-30C | White | 2.5 | 30 | 1.0 | Thinner Tissue |
| QLCEL-45A | Black | 4.8 | 45 | 2.0 | Normal Tissue |
| QLCEL-45B | Violet | 3.5 | 45 | 1.5 | Thin Tissue |
| QLCEL-45C | White | 2.5 | 45 | 1.0 | Thinner Tissue |
| QLCEL-60A | Black | 4.8 | 60 | 2.0 | Normal Tissue |
| QLCEL-60B | Violet | 3.5 | 60 | 1.5 | Thin Tissue |
| QLCEL-60C | White | 2.5 | 60 | 1.0 | Thinner Tissue |
1. Q:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing Medical Device more than 10 years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in Jiaxing city, Zhejiang Province, China.
It is about more than 1 hours from Shanghai.
2. 3.Q:Can you make samples?
A: Yes, we can make samples for you.
4.Q:How does your factory do as quality control?
A: Quality is the lift of our factory. We have inspector in
different post, and there are three inspectors before packing to
get best quality products.
5.Q: How is your post market service ?
A: If any damaged rings in the course of carriage, with the
checking it's our mistake, we will take full responsibility to compensate the customers.
6.Q:Can you do OEM for us?
A: Certainly. We also can build the moulding for our new customer.
7.Q:Does the price include freight?
A:No, please choose the express service provider or negotiate with
us.
