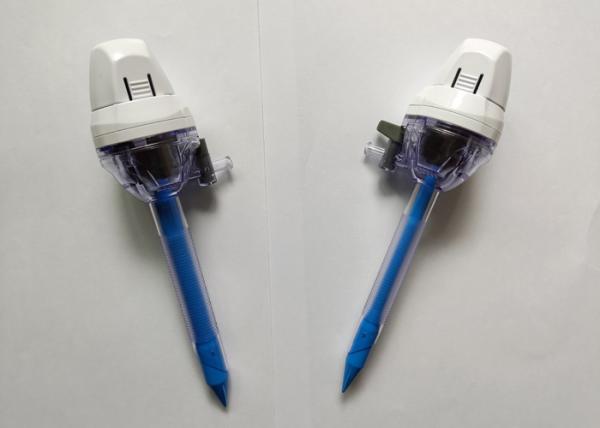

Plastic invisible Laparoscopic Trocar Disposable Endoscopic Trocar
Introduction:
Disposable laparoscopic puncture design and development of the
company (hereinafter referred to as the Trocars device) is mainly
composed of a Trocars Cannula and Trocars core, Trocars cannula
mainly comprises a sealing cover, injection valve and choke valve,
sleeve etc.
Product specification
2.5.1 Appearance
The appearance of the Trocars shall be smooth without burrs and
sharp edges, as well as voids, cracks, grooves and sinters visible
to the naked eye.And no grinding agents, polishing agents and
preservatives.
2.5.2 Basic Size
The basic dimensions of the Trocars should comply with the
provisions of Figure 1, Figure 2, Figure 3 and Table 2.
2.5.3 Physical Performance
2.5.3.1 Flexibility
The gas injection valve and sealing cover of the Trocars shall be
opened and closed flexibly without blocking or jamming.
Main raw materials
Table 1 Material Requirements of Main Parts
| Part Name | Material Designation | Standard No. |
| Trocars Core,Trocars Cannula | PC | EN ISO 7391-1:2006 |
| Trocars core fixed seat | ABS | ENISO 19062-1:2015 |
| Trocarse core tube | 12Cr18Ni9 | EN ISO 7153-1:2016 |
Contradiction
1. products are provided by physicians who have received
professional knowledge and technical training and are used under
the guidance of relevant personnel.
2. do not attempt to operate the product until you have read the
instruction manual completely. Any careless operation will pose a
risk to the success of the operation
Basic size as well as model and specification comparison table
The basic size of the Trocars shall conform to the provisions in
Table 1.
Table 1 Basic Size of Trocars in mm
| Trocars Specifications | Trocars core outer diameter(D) | Cannula length(L) | Trocars cannula inner diameter(d) |
| Basic size | Limit deviation |
| PC5S | 5.8±0.8 | 77±2 | 6 | +0.3 0 |
| PC5M | 102±2 |
| PC5L | 152±2 |
| PC10S | 10.8±0.8 | 77±2 | 11 |
| PC10M | 102±2 |
| PC10L | 152±2 |
| PC12S | 12.8±0.8 | 77±2 | 13 |
| PC12M | 102±2 |
| PC12L | 152±2 |
| PC15S | 15.8±0.8 | 77±2 | 16 |
| PC15M | 102±2 |
| PC15L | 152±2 |
Cautions
1. Check the package before using. Don't use if the package is
damaged.
2. This product is for single patient use only. Do not reuse.
3. Make sure the product is within the expiry date. It is strictly
prohibited to use the product beyondthe expiration date.
4. Endoscopic surgery should be performed by surgeons who are
familiar with endoscopic techniques.Reference to medical literature
relative to technique, complication and other risks is necessary.
FAQ
- Q:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing
Medical Device more than 10 years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in Jiaxing city, Zhejiang Province,
China.
It is about more than 1 hours from Shanghai. - 3.Q:Can you make samples?
A: Yes, we can make samples for you.
4.Q:How does your factory do as quality control?
A: Quality is the lift of our factory. We have inspector in
different post, and there are three inspectors before packing to
get best quality products.
5.Q: How is your post market service ?
A: If any damaged rings in the course of carriage, with the
checking it's our mistake, we will take full responsibility to
compensate the customers.
6.Q:Can you do OEM for us?
A: Certainly. We also can build the moulding for our new customer.
7.Q:Does the price include freight?
A:No, please choose the express service provider or negotiate with
us.
